Gires-TournoisInterferometer Mirrors
Description
A Gires–Tournois interferometer (GTI) is an optical standing-waveresonator designed for generating chromatic dispersion. GTImirrors are used mainly for pulse compression in Yb:YAG, Yb:KGWfemtosecond lasers, but can be optimized for other wavelengths, forexample Ti:Sapphire laser system. Compared to prism or grating pulsecompression systems GTI thin film mirrors exhibits lower losses andsensitivity to mechanical misalignment errors, thus enabling higheroutput power and stability of laser system..
Standard specifications
Diameter tolerance +0/-0.1 mm
Thickness tolerance ±0.1 mm
Clear aperture >90 %
Surface quality 20-10 S-D; 10-5 S-D on request
Surface flatness <λ/8 @ 632.8 nm
Protective chamfers <0.25 mm x 45°
Measured reflectivity Rsp>99.8 % @ 1010 nm – 1080 nm,AOI=0° - 10°
Rsp>99.8 % @ 700 – 900 nm,AOI=0° - 10°
Coating adhesion and durability Per MIL-C-675A
Laser damage threshold reports www.altechna.com/lidt
Features

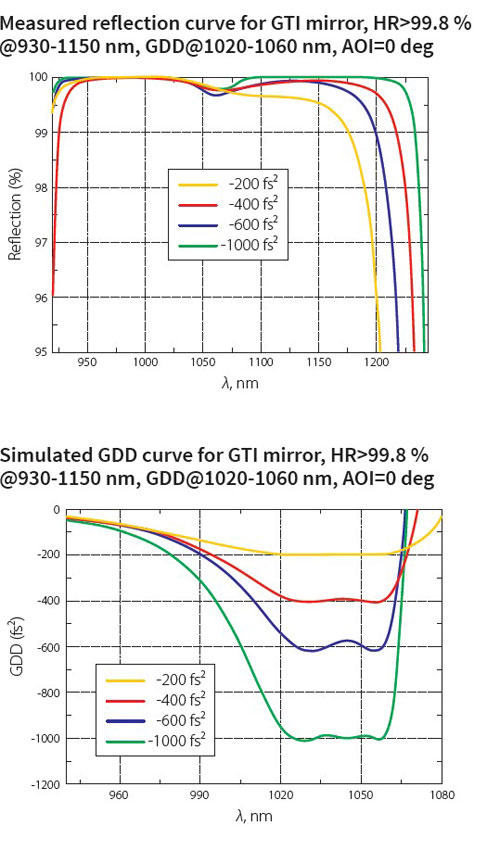

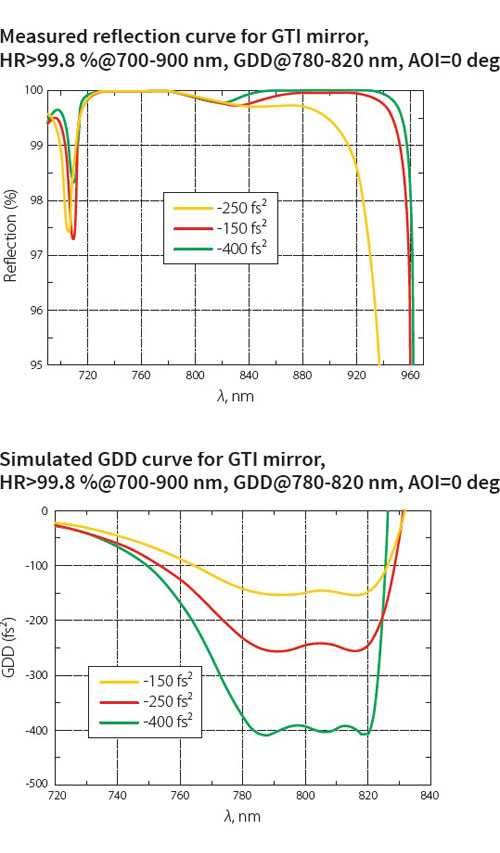

• Reflectivity up to 99,9 %.• Central wavelength tolerance up to 1 %.• GDD values ranges from 100 to 1500 fs2 for Yb:KGW, Yb:YAG lasertype coatings according to customer specifications.• Calculated and measured GDD curves are supplied with every batch.
Catalog Items
Product ID AOI, deg Average GDD, fs2 Wavelength range, nm Dimensions, mm Material
1-OS-2-0127-5-150-[10A00] 0 - 10 -150 780 - 820 Ø12.7x5 UVFS
1-OS-2-0254-5-150-[10A00] Ø25.4x5
1-OS-2-0127-5-250-[10A00] -250 Ø12.7x5
1-OS-2-0254-5-250-[10A00] Ø25.4x5
1-OS-2-0127-5-400-[10A00] -400 Ø12.7x5
1-OS-2-0254-5-400-[10A00] Ø25.4x5
1-OS-2-0127-5-200-[10B00] -200 1020 - 1060 Ø12.7x5
1-OS-2-0254-5-200-[10B00] Ø25.4x5
1-OS-2-0127-5-400-[10B00] -400 Ø12.7x5
1-OS-2-0254-5-400-[10B00] Ø25.4x5
1-OS-2-0127-5-600-[10B00] -600 Ø12.7x5
1-OS-2-0254-5-600-[10B00] Ø25.4x5
1-OS-2-0127-5-1000-[10B00] -1000 Ø12.7x5
1-OS-2-0254-5-1000-[10B00] Ø25.4x5
