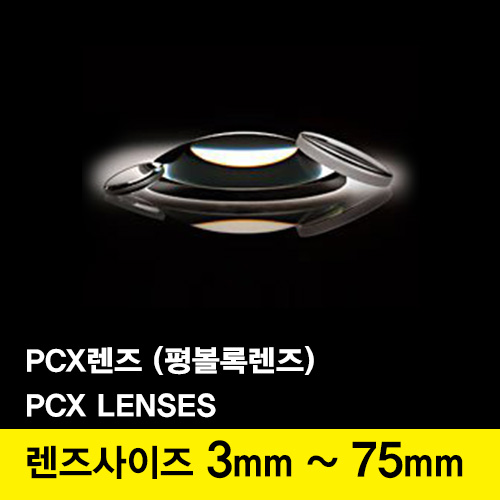

PCX LENS (평볼록렌즈)

상품 옵션
판매가격
가격문의
배송비
2,900원 (30,000원 이상 구매시 무료 / 제주도서산간 2,900원 추가)
제조사
원산지
기본옵션
렌즈지름(mm)
초점거리(mm)
      총 상품 금액 0 원
      ADD TO CART BUY NOW WISH LIST



      ※ 구매 시 유의사항입니다.


      해당 제품은 주문 후 배송까지 5~7일(영업일 기준) 정도 소요됩니다.

      제품 가격은 환율 및 공급 상황에 따라 변동될 수 있으므로

      구매 전 반드시 문의 후 주문해 주시기 바랍니다.


      구매 시 참고 부탁드립니다.







      Plano-Convex LENSES (PCX)
      PCX LENSES
      평면 볼록 렌즈 (PCX)는 양수 초점거리 (positive focal length)를 가지고 있으며 이미징 용도에서 수집하고 초점을 맞추는 데 적합합니다. 이미터(emitter), 탐지기(detector), 레이저와 섬유광학 등 다양한 용도로 사용 가능합니다. 코팅된 버전은 최적의 광 투 과율을 가지고 있습니다. 다양한 지름과 초점거리가 가능합니다.

      Dia 지름(mm)EFL 초점거리(mm)CT 중심부(mm)렌즈재질제품번호가격
      3.0 3.0 2.0 SF11PCX16_3.0_3.0₩88,000
      3.0 4.5 1.8 LaSF44PCX16_3.0_4.5₩88,000
      3.0 6.0 1.8 BK7PCX16_3.0_6.0₩80,000
      3.0 7.5 1.5 BK7PCX16_3.0_7.5₩80,000
      3.0 9.0 1.5 BK7PCX16_3.0_9.0₩80,000
      3.0 12.0 1.1 BK7PCX16_3.0_12.0₩80,000
      3.0 15.0 1.3 BK7PCX16_3.0_15.0₩80,000
      4.0 4.0 1.7 LaSF44PCX16_4.0_4.0₩83,600
      4.0 6.0 2.3 BK7PCX16_4.0_6.0₩83,600
      4.0 8.0 1.4 BaF10PCX16_4.0_8.0₩75,600
      4.0 10.0 1.6 BK7PCX16_4.0_10.0₩75,600
      4.0 12.0 1.5 BK7PCX16_4.0_12.0₩75,600
      4.5 4.5 2.6 LaSF44PCX16_4.5_4.5₩78,300
      4.5 9.0 2.4 BK7PCX16_4.5_9.0₩70,300
      5.0 5.0 1.9 LaSF44PCX16_5.0_5.0₩64,000
      5.0 7.5 1.9 SF11PCX16_5.0_7.5₩64,000
      5.0 10.0 1.6 BK7PCX16_5.0_10.0₩62,300
      5.0 12.0 1.8 BK7PCX16_5.0_12.0₩62,300
      5.0 15.0 1.6 BK7PCX16_5.0_15.0₩62,300
      5.0 20.0 1.5 BK7PCX16_5.0_20.0₩62,300
      5.0 25.0 1.6 BK7PCX16_5.0_25.0₩62,300
      5.0 30.0 1.6 BK7PCX16_5.0_30.0₩62,300
      6.0 6.0 2.5 SF11PCX18_6.0_6.0₩46,200
      6.0 7.5 2.5 SF11PCX18_6.0_7.5₩46,200
      6.0 9.0 1.8 SF5PCX18_6.0_9.0₩46,200
      6.0 12.0 1.6 BK7PCX18_6.0_12.0₩44,500
      6.0 15.0 2.0 BK7PCX18_6.0_15.0₩44,500
      6.0 18.0 1.4 BK7PCX18_6.0_18.0₩44,500
      6.0 21.0 1.4 BK7PCX18_6.0_21.0₩44,500
      6.0 24.0 1.5 BK7PCX18_6.0_24.0₩44,500
      6.0 30.0 1.3 BK7PCX18_6.0_30.0₩44,500
      6.0 36.0 1.6 BK7PCX18_6.0_36.0₩44,500
      6.0 48.0 1.6 BK7PCX18_6.0_48.0₩44,500
      6.0 60.0 1.6 BK7PCX18_6.0_60.0₩44,500
      6.0 72.0 1.6 BK7PCX18_6.0_72.0₩44,500
      9.0 9.0 3.0 SF11PCX18_9.0_9.0₩48,000
      9.0 12.0 2.5 SF11PCX18_9.0_12.0₩48,000
      9.0 13.5 2.6 SF5PCX18_9.0_13.5₩48,000
      9.0 15.0 3.0 BK7PCX18_9.0_15.0₩48,000
      9.0 18.0 2.4 BK7PCX18_9.0_18.0₩46,200
      9.0 22.0 1.9 BK7PCX18_9.0_22.0₩46,200
      9.0 27.0 2.5 BK7PCX18_9.0_27.0₩46,200
      9.0 36.0 2.3 BK7PCX18_9.0_36.0₩46,200
      9.0 45.0 1.5 BK7PCX18_9.0_45.0₩46,200
      9.0 54.0 2.0 BK7PCX18_9.0_54.0₩46,200
      9.0 72.0 2.0 BK7PCX18_9.0_72.0₩55,100
      9.0 90.0 2.0 BK7PCX18_9.0_90.0₩55,100
      10.0 10.0 3.3 SF11PCX18_10.0_10.0₩48,000
      10.0 15.0 3.0 SF11PCX18_10.0_15.0₩48,000
      10.0 20.0 3.0 BK7PCX18_10.0_20.0₩46,200
      10.0 25.0 3.0 BK7PCX18_10.0_25.0₩46,200
      10.0 30.0 3.0 BK7PCX18_10.0_30.0₩46,200
      10.0 40.0 3.0 BK7PCX18_10.0_40.0₩46,200
      10.0 50.0 3.0 BK7PCX18_10.0_50.0₩46,200
      10.0 75.0 3.0 BK7PCX18_10.0_75.0₩55,100
      10.0 100.0 3.0 BK7PCX18_10.0_100.0₩46,200
      12.0 12.0 4.0 SF11PCX18_12.0_12.0₩50,700
      12.0 15.0 4.5 BK7PCX18_12.0_15.0₩50,700
      12.0 18.0 3.0 SF5PCX18_12.0_18.0₩50,700
      12.0 20.0 3.5 BK7PCX18_12.0_20.0₩50,700
      12.0 24.0 2.8 BK7PCX18_12.0_24.0₩48,900
      12.0 30.0 3.0 BK7PCX18_12.0_30.0₩48,900
      12.0 36.0 3.0 K5PCX18_12.0_36.0₩48,900
      12.0 42.0 2.7 BK7PCX18_12.0_42.0₩48,900
      12.0 48.0 2.5 BK7PCX18_12.0_48.0₩48,900
      12.0 54.0 3.0 BK7PCX18_12.0_54.0₩48,900
      12.0 60.0 2.5 BK7PCX18_12.0_60.0₩48,900
      12.0 72.0 2.4 BK7PCX18_12.0_72.0₩48,900
      12.0 84.0 2.5 BK7PCX18_12.0_84.0₩48,900
      12.0 100.0 2.5 BK7PCX18_12.0_100.0₩48,900
      12.7 12.7 4.0 SF11PCX20_12.7_12.7₩50,700
      12.7 15.0 5.3 BK7PCX20_12.7_15.0₩50,700
      12.7 19.1 4.0 BK7PCX20_12.7_19.1₩50,700
      12.7 25.4 3.0 BK7PCX20_12.7_25.4₩48,900
      12.7 31.8 3.0 BK7PCX20_12.7_31.8₩48,900
      12.7 38.1 3.0 BK7PCX20_12.7_38.1₩60,500
      12.7 44.5 2.8 BK7PCX20_12.7_44.5₩48,900
      12.7 50.8 2.5 BK7PCX20_12.7_50.8₩60,500
      15.0 15.0 5.5 SF5PCX20_15.0_15.0₩50,700
      15.0 18.0 4.0 SF5PCX20_15.0_18.0₩50,700
      15.0 20.0 3.8 SF5PCX20_15.0_20.0₩50,700
      15.0 22.5 3.4 SF5PCX20_15.0_22.5₩50,700
      15.0 30.0 3.2 BK7PCX20_15.0_30.0₩48,900
      15.0 40.0 3.0 BK7PCX20_15.0_40.0₩48,900
      15.0 45.0 2.5 BK7PCX20_15.0_45.0₩48,900
      15.0 60.0 2.1 BK7PCX20_15.0_60.0₩48,900
      15.0 75.0 1.8 BK7PCX20_15.0_75.0₩48,900
      15.0 100.0 3.0 BK7PCX20_15.0_100.0₩48,900
      18.0 18.0 5.0 SF11PCX20_18.0_18.0₩50,700
      18.0 22.5 4.0 SF11PCX20_18.0_22.5₩50,700
      18.0 27.0 3.8 SF5PCX20_18.0_27.0₩50,700
      18.0 36.0 3.6 BK7PCX20_18.0_36.0₩48,900
      18.0 54.0 3.0 BK7PCX20_18.0_54.0₩48,900
      18.0 72.0 3.0 BK7PCX20_18.0_72.0₩60,500
      20.0 20.0 4.6 SF11PCX20_20.0_20.0₩50,700
      20.0 25.0 4.0 SF11PCX20_20.0_25.0₩50,700
      20.0 30.0 4.5 BaF10PCX20_20.0_30.0₩50,700
      20.0 35.0 4.5 BK7PCX20_20.0_35.0₩50,700
      20.0 40.0 4.9 BK7PCX20_20.0_40.0₩48,900
      20.0 50.0 3.2 BK7PCX20_20.0_50.0₩48,900
      20.0 60.0 4.5 BK7PCX20_20.0_60.0₩48,900
      20.0 70.0 3.0 BK7PCX20_20.0_70.0₩48,900
      20.0 80.0 2.4 BK7PCX20_20.0_80.0₩48,900
      20.0 100.0 4.3 BK7PCX20_20.0_100.0₩48,900
      20.0 150.0 3.0 BK7PCX20_20.0_150.0₩48,900
      25.0 25.0 8.0 SF5PCX20_25.0_25.0₩54,300
      25.0 30.0 8.1 BK7PCX20_25.0_30.0₩54,300
      25.0 35.0 7.0 BK7PCX20_25.0_35.0₩54,300
      25.0 40.0 5.6 BK7PCX20_25.0_40.0₩54,300
      25.0 50.0 4.9 BK7PCX20_25.0_50.0₩52,500
      25.0 60.0 4.7 BK7PCX20_25.0_60.0₩52,500
      25.0 75.0 4.5 BK7PCX20_25.0_75.0₩52,500
      25.0 85.0 4.3 BK7PCX20_25.0_85.0₩52,500
      25.0 100.0 4.3 BK7PCX22_25.0_100.0₩52,500
      25.0 125.0 3.5 BK7PCX22_25.0_125.0₩52,500
      25.0 150.0 3.5 BK7PCX22_25.0_150.0₩52,500
      25.0 175.0 3.5 BK7PCX22_25.0_175.0₩52,500
      25.0 200.0 3.2 K5PCX22_25.0_200.0₩52,500
      25.0 250.0 3.0 BK7PCX22_25.0_250.0₩52,500
      25.0 300.0 3.0 BK7PCX22_25.0_300.0₩52,500
      25.0 400.0 3.2 K5PCX22_25.0_400.0₩52,500
      25.0 500.0 3.2 BK7PCX22_25.0_500.0₩52,500
      25.0 750.0 3.2 BK7PCX22_25.0_750.0₩52,500
      25.4 25.4 7.0 SF11PCX22_25.4_25.4₩54,300
      25.4 38.1 7.0 BK7PCX22_25.4_38.1₩62,300
      25.4 50.8 5.0 BK7PCX22_25.4_50.8₩62,300
      25.4 63.5 4.8 BK7PCX22_25.4_63.5₩62,300
      25.4 76.2 4.0 BK7PCX22_25.4_76.2₩62,300
      25.4 88.9 4.0 BK7PCX22_25.4_88.9₩52,500
      25.4 101.6 4.0 BK7PCX22_25.4_101.6₩52,500
      30.0 30.0 6.9 SF11PCX22_30.0_30.0₩65,800
      30.0 40.0 5.0 SF11PCX22_30.0_40.0₩65,800
      30.0 50.0 6.4 SF5PCX22_30.0_50.0₩65,800
      30.0 60.0 6.0 BK7PCX22_30.0_60.0₩62,300
      30.0 75.0 6.1 BK7PCX22_30.0_75.0₩62,300
      30.0 100.0 6.0 BK7PCX22_30.0_100.0₩62,300
      30.0 120.0 6.0 BK7PCX22_30.0_120.0₩62,300
      40.0 40.0 8.7 SF11PCX22_40.0_40.0₩72,000
      40.0 60.0 9.3 BK7PCX22_40.0_60.0₩72,000
      40.0 80.0 8.0 K5PCX22_40.0_80.0₩70,300
      40.0 100.0 7.0 K5PCX22_40.0_100.0₩70,300
      40.0 200.0 5.0 K5PCX22_40.0_200.0₩70,300
      40.0 300.0 5.0 BK7PCX22_40.0_300.0₩70,300
      40.0 400.0 5.0 BK7PCX22_40.0_400.0₩70,300
      50.0 50.0 12.0 SF11PCX22_50.0_50.0₩79,200
      50.0 75.0 11.0 BK7PCX22_50.0_75.0₩79,200
      50.0 100.0 10.0 BK7PCX22_50.0_100.0₩75,600
      50.0 125.0 10.0 BK7PCX22_50.0_125.0₩75,600
      50.0 150.0 9.0 BK7PCX22_50.0_150.0₩75,600
      50.0 175.0 9.0 BK7PCX22_50.0_175.0₩90,700
      50.0 200.0 5.1 BK7PCX22_50.0_200.0₩75,600
      50.0 250.0 4.9 BK7PCX22_50.0_250.0₩75,600
      50.0 500.0 5.0 BK7PCX22_50.0_500.0₩75,600
      75.0 75.0 32.6 BK7PCX22_75.0_75.0₩137,000
      75.0 150.0 11.5 BK7PCX22_75.0_150.0₩115,600
      75.0 200.0 8.7 BK7PCX22_75.0_200.0₩115,600
      75.0 250.0 8.0 BK7PCX22_75.0_250.0₩137,000
      75.0 500.0 8.0 BK7PCX22_75.0_500.0₩137,000
